Permission model

Access in Docsentry is decided by access-control entries on folders and documents. This page describes exactly how a decision is reached, because the details matter: deny beats allow, and a document can override what its folder said.

Permission bits

Eight bits make up a permission mask. Their numeric values are fixed by the authorisation schema and never change.

Bit	Value	Grants
Preview	1	See the document exists, and view its generated preview.
Download	2	Retrieve the original bytes.
Upload	4	Add new documents to a folder.
EditMetadata	8	Change metadata, tags, categories, and classification.
EditContent	16	Upload a new version, check out, and check in.
Delete	32	Move to the recycle bin.
ManagePermissions	64	Change access-control entries on the resource.
ManageWorkflow	128	Start and administer workflows on the resource.

A mask is the bitwise union of the bits it grants. Preview plus Download is 3.

Access levels

Rather than picking bits by hand, most grants use a named rung on the access-level ladder:

Level	Mask	Includes
Viewer	1	Preview
Reader	3	+ Download
Contributor	7	+ Upload
Editor	31	+ EditMetadata, EditContent, Delete
Manager	127	+ ManagePermissions
FullControl	255	+ ManageWorkflow

The ladder is strictly ascending, so each rung contains everything below it. A grant that does not match a rung exactly - or that carries any deny bits at all - is classified as Custom.

Note

Any deny makes a grant Custom, even when its allow mask exactly matches a named rung. This is deliberate: the name would otherwise misrepresent what the entry does.

Subjects

An access-control entry names a subject. There are four kinds:

Subject	Meaning
User	One named account.
Role	Everyone holding a system role.
Department	Everyone in a department.
OrganizationUnit	Everyone in an organisation unit.

Granting to a department or organisation unit is usually the right instinct: membership changes then flow through without anyone revisiting the folder. See Departments and org units.

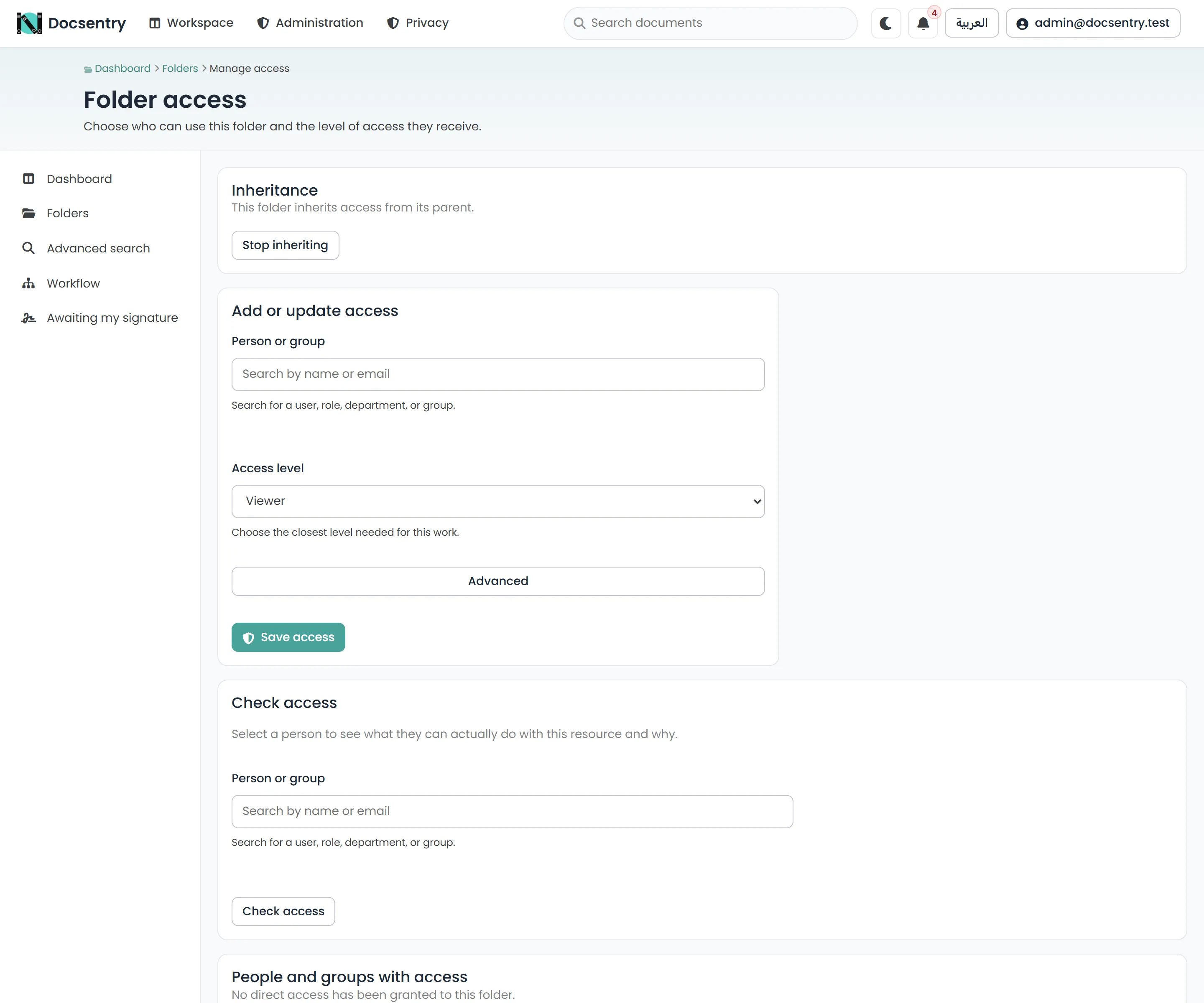

The access screen for a folder. Entries name a subject and grant or deny permission bits.

How a decision is reached

Three rules, applied in order.

1. Union the subject masks

A user is usually covered by several entries at once - as an individual, through a role, and through a department. All applicable entries are OR-ed together, separately for allow and deny:

allow = allow₁ | allow₂ | allow₃ ...
deny  = deny₁  | deny₂  | deny₃  ...

2. Deny wins

effective = allow & ~deny

A deny bit removes that permission no matter how many other entries allow it, and no matter how specific those entries are. There is no “more specific allow beats a broader deny” rule.

The schema forbids a single entry from allowing and denying the same bit, so overlap within one entry is rejected rather than silently resolved.

3. A document overrides its folder, bit by bit

A document inherits its folder’s effective result, then its own entries override - but only for the bits the document actually mentions:

specified = documentAllow | documentDeny
effective = (folderEffective & ~specified) | (documentAllow & ~documentDeny)

So a document entry that speaks only about Download changes only Download. Everything else still comes from the folder. This is what makes it practical to lock down one sensitive document inside an otherwise open folder without restating the whole grant.

Access is default-deny: an empty effective mask grants nothing.

Inheritance

By default a folder inherits from its parent. Inheritance can be broken on a folder, at which point that subtree is governed only by its own entries. Use this sparingly - a broken inheritance point is invisible from above and is the usual reason an access question has a surprising answer.

Worked example

A folder /Finance/Contracts with:

• an entry granting the Finance department Reader (allow 3)
• an entry granting the user Omar Editor (allow 31)
• an entry denying the Contractors role Download (deny 2)

Omar is in Finance and is not a contractor:

allow = 3 | 31        = 31
deny  = 0
effective = 31 & ~0   = 31   -> Editor

Layla is in Finance and holds the Contractors role:

allow = 3             = 3
deny  = 2
effective = 3 & ~2    = 1    -> Preview only

She can see the contracts exist and view their previews, but cannot download them. If a further entry granted Contractors FullControl, the deny would still remove Download - deny is not outvoted.

Now a single document in that folder carries its own entry denying Omar EditContent (deny 16):

specified = 0 | 16                  = 16
effective = (31 & ~16) | (0 & ~16)  = 15

Omar keeps Preview, Download, Upload, and EditMetadata on that document, but cannot change its content - and his permissions everywhere else in the folder are untouched.

Effective permissions are materialised

Resolving this chain per request, per document, would be expensive. Instead the results are materialised into effective-permission tables, rebuilt when the inputs change.

Rebuilds are queued and drained inline, within the same transaction as the access-control write, so a grant is visible immediately to the user who made it. A background job drains the same queue as a safety net for rows that outlive their request - it is not the primary path. See Background jobs.

The stored procedure in the database is the source of truth for the persisted rows. The application carries a matching implementation of the same rules so that the precedence logic can be tested independently of a database.

Roles versus grants

Holding a system role does not by itself give access to any folder. Roles gate administrative screens - and can be used as ACL subjects - but repository access always comes from an access-control entry. Making someone an Administrator and expecting them to see a folder they have no grant on is a common early misunderstanding.

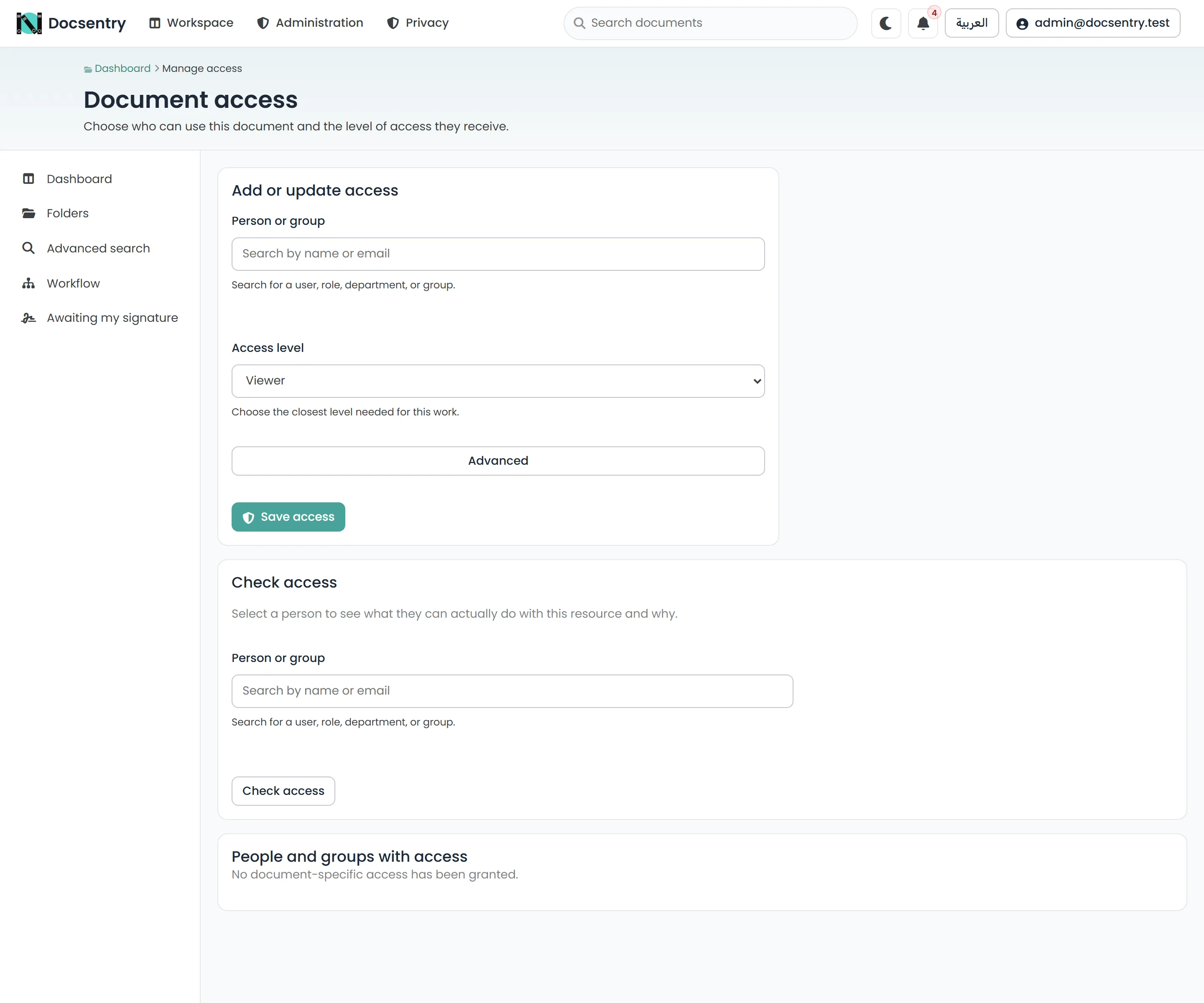

A document’s own entries override the folder result, bit by bit, for the bits they specify.

Checking access

Both the folder and document access screens have a Check access panel: pick a user, and it reports their effective mask on that resource and why. Use it before assuming a grant did what you meant.
